AIQURA AD805 Oxygen Finger Clip Pulse Oximeter

AIQURA AD805 Oxygen Finger Clip Pulse Oximeter

Overview

Accuracy

measures the oxygen concentration in the blood with a minimum deviation of +/ -2 percent and measures the pulse rate with a minimum deviation of +/ -2 BPM

Oxygenated blood absorbs light preferentially at 940nm (near infra-red light), whereas deoxygenated blood absorbs light preferentially at 660nm(red light). A pulse oximeter works by passing a beam of red and infra-red light through a pulsating capillary bed

then measures the amount of red and infra-red light emerging from the tissues via a sensor.The relative a bsorption of light by oxyhemoglobin (HbO) and deoxyhemoglobin is then processed according to the Beer-Lambert’s law and the oxygen saturation level (SpO2) determined. For Sports or Aviation use

Display

colour OLED screen with a multidirectional display, provides your SPO2, pulse rate, SPO2 wave form, pulse index (strength of signal) and the battery status indicator

Characteristic

Features :

1. Battery operated, portable device
2. 32KB RAM + 512KB ROM
3. Silicone Finger sleeve material
4. Support low energy bluetooth BLE4.0
5. Measures the pulse rate with a minimum deviation of +/ -2 BPM
6. Measures the oxygen concentration in the blood with a minimum deviation of +/ -2 percent
7. Display colour OLED screen with a multidirectional display, provides your SPO2, pulse rate
8. Provides SPO2 wave form, pulse index (strength of signal) and the battery status indicator

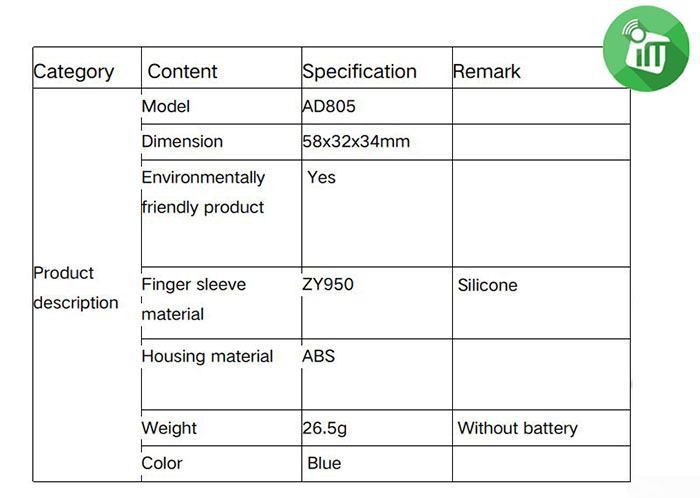

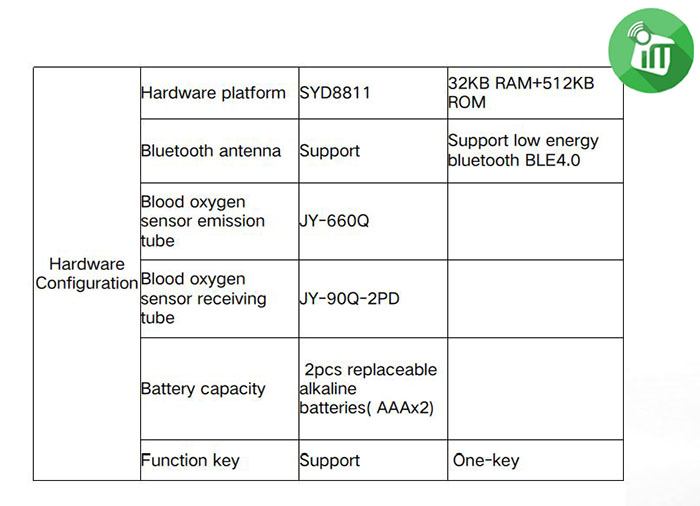

Specs :
